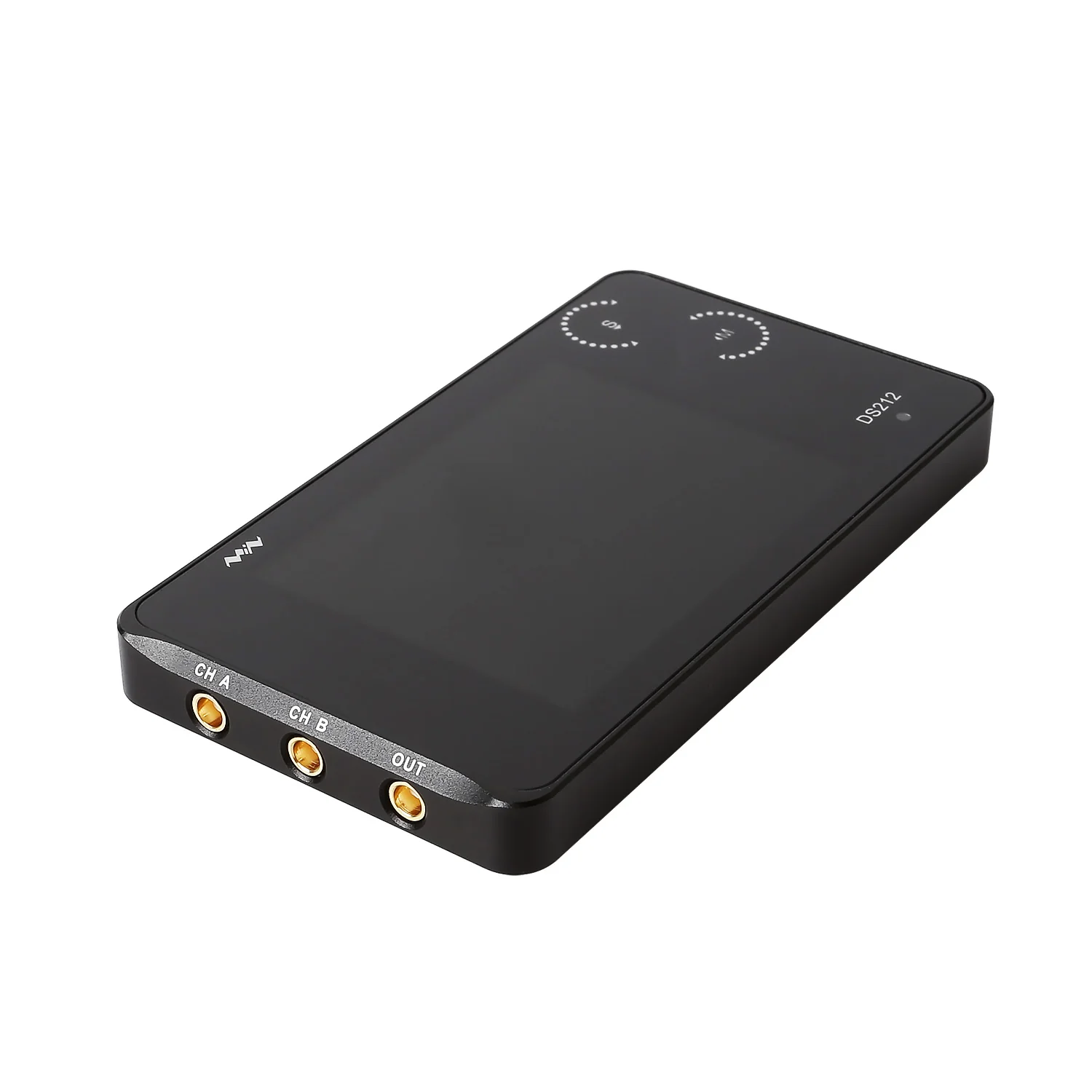

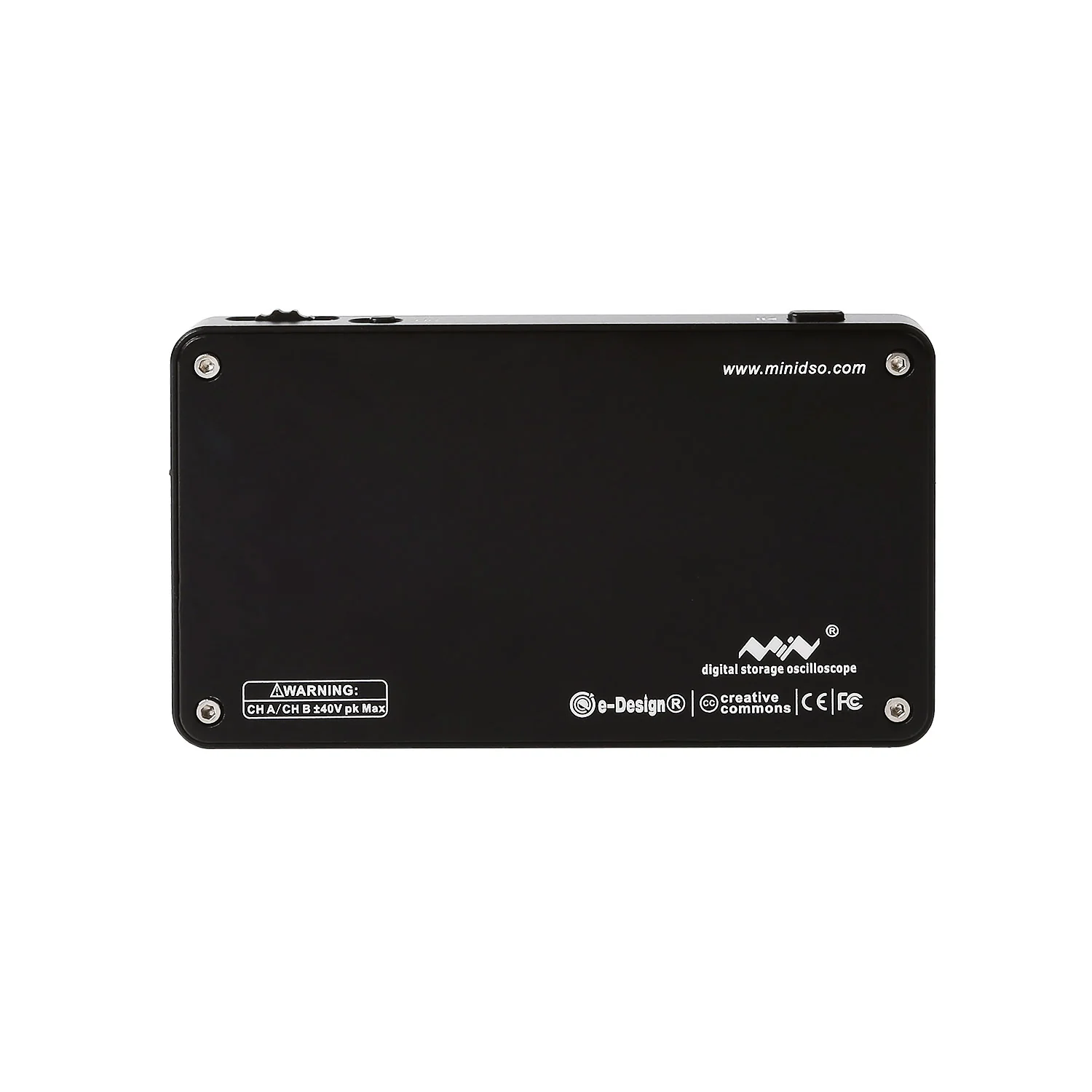

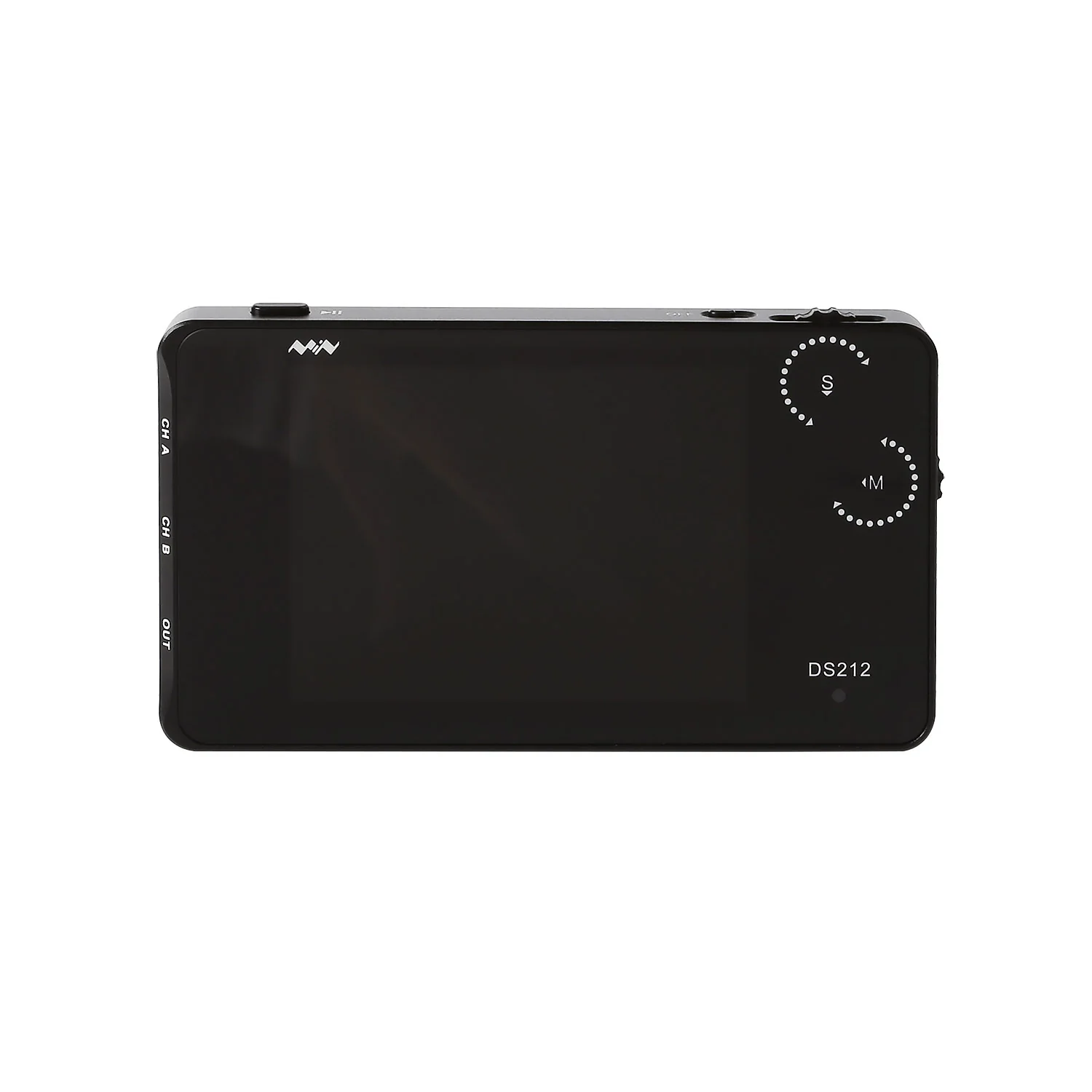

[Open Box] CNCchinese DSO212 2-CH Handheld Mini Digital Oscilloscope

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    DSO Series:

    ModelDSO Nano (DSO211)DSO Note II (DSO202)DSO 212DSO Quad (DSO203)
    MCUSTM32F103VCSTM32F303VCSTM32F303VCSTM32F103VE
    ADCMCU internal ADCMCU internal ADCMCU internal ADCAD9288
    ChannelsAnalog channel 1 + 1 internal channel2 analog2 analog2 analog, 2 digital
    Analog Bandwidth200KHz1MHz1MHz8MHz
    Max Sample Rate1MSa/s10MSa/s10MSa/s72MSa/s
    Maximum Memory Depth8K8K8K4K
    Horizontal Sensitivity1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)1uS/Div~2S/Div(1-2-5sequence step)0.1uS/Div~1S/Div(1-2-5sequence step)
    Vertical Sensitivity20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)20mv/Div~10V/Div(1-2-5sequence step)50mv/Div~10V/Div(1-2-5sequence step)
    Input Resistance1MΩ1MΩ1MΩ1MΩ
    CouplingDC / ACDC / ACDC / ACDC / AC
    Auto Adjustment ModeAUTO_FITAUTO_FITAUTO_FITNO
    Calculation Waveforms-A, RecA, A + RecA-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC-A,-B,A+B,A-B RecA,RecB,RecC
    Storage8MB USB flash disk memory8MB USB flash disk memory8MB USB flash disk memory8MB USB flash disk memory
    APP Installed1224
    Operationbuttonsbutton,touch areabuttons,scrollersbuttons,scrollers
    USB InterfaceMicro USBMicro USBMicro USBMini USB
    Battery500mAh500mAh500mAh1000mAh
    Screen Size2.8inch2.8inch2.8inch3.0inch
    Screen Resolution320 × 240320 × 240320 × 240400 × 240
    Open SourceApplication layer Open-Source
    FUNCTION
    • Rising/Falling edge trigger
    • Store file as BMP, DAT, BUF, or CSV format
    • Math waveforms:-A,-B,A+B,A-B,Rec A,RecB,RecC
    • Synchronous mode: Auto, Normal, Single, None, Scan
    • Inbuilt 8MB U disk storage for waveform data and images
    • Modes of vertical precise, horizontal precise measurement and triggering threshold
    • Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg
    • Inbuilt Signal Generator: Sine/Square/Triangle/Sawtooth wave

    SPECIFICATION
    • Max sample rate: 10MSa/s
    • Analog bandwidth: 1MHz
    • Max sample memory depth: 8K
    • Analog input impedance: 1MΩ
    • Max input voltage: ±40V(X1 probe)
    • Coupling:AC/DC
    • Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)
    • Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)
    • Dimension: 100mm X 56.5mm X 10.7mm
    • Weight: 95g
    • Case side thumbwheel control
    • Screen: 2.8' Full Color TFT LCD Display (320X240 pixels)
    • Recharging through Micro USB port
    • Internal 500mAh Lithium battery
    • Compliant with EU/USA certification CE/FCC

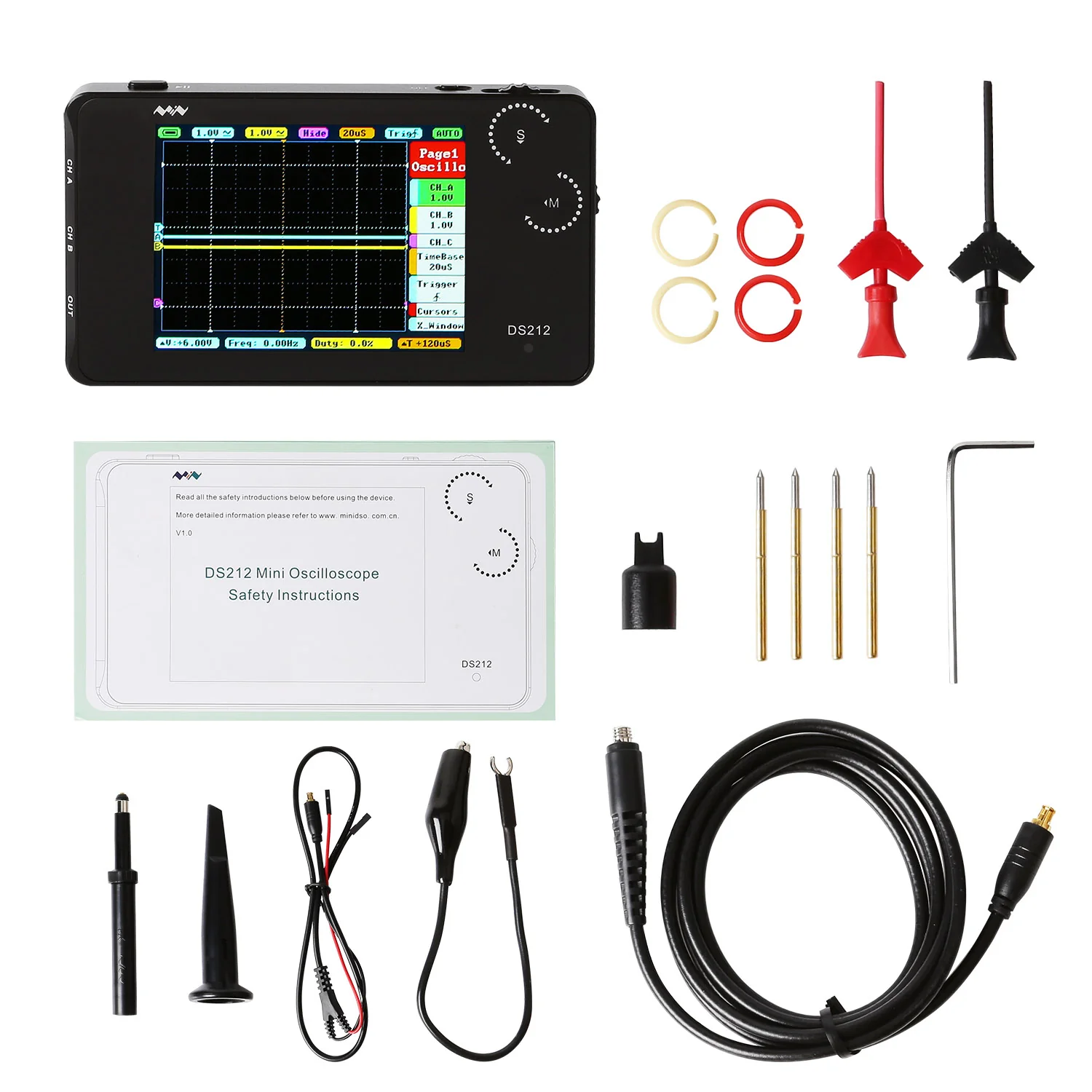

    WHAT'S IN THE PACKAGE
    • 1* DS212 mini oscilloscope
    • 2* x1x10probe
    • 1*Allen wrench
    • 1* Data cable
    • 1* Manual
    • 1* Warranty card
